UT251C
New
UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.
1 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 19 loyalty points. Your cart will total 19 points that can be converted into a voucher of S$ 3.80.

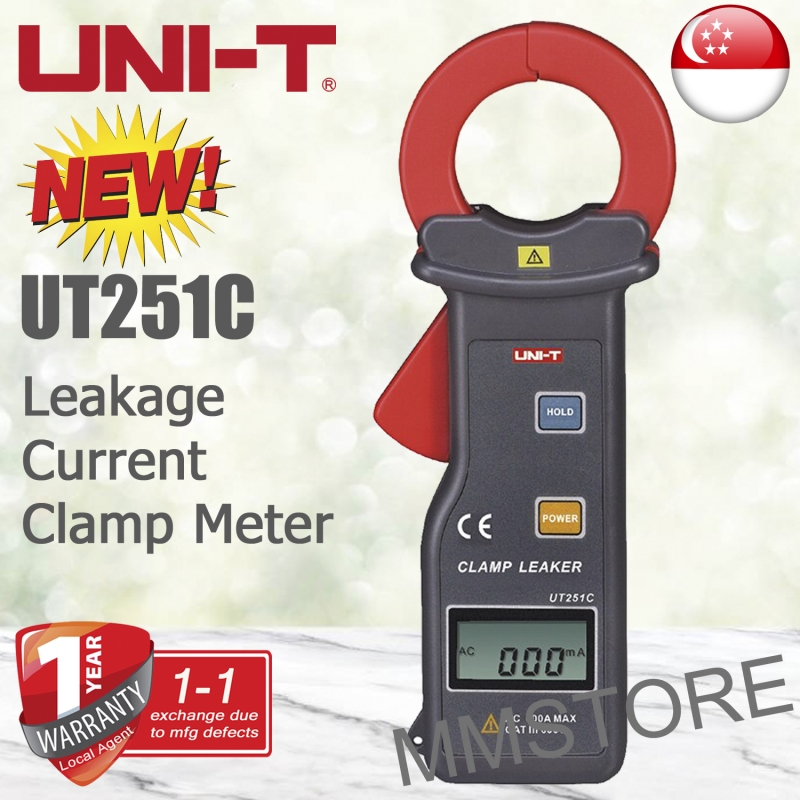

UNI-T UT251C High Sensitivity Leakage Current Clamp Meter
UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.
Recipient :
* Required fields
or Cancel
Specifications | Range | UT251C |
Leakage current (A) | 0.001mA~60A | ±(1.5%+5) |
60A~199.9A | ±(2%+5) | |
200A~300A | ±(3%+5) | |
300A~600A | ±(4%+5) | |
Voltage (Freq.) 0V~600V (50Hz/60Hz) | √ | |
Resolution | 1mA | |
Features | ||
Display | 4 digits LCD | √ |
Clamp size | 35mm x 40mm | |
Auto range | √ | |
RS-232 | √ | |
Data storage | 99 | |
Peak/Data hold | √ | |
Overload protection | OL | √ |
Auto power off | 5 minutes | √ |
Low battery indication | ≤7.2V | |
Over-range display | OL | √ |
Test mode | Clamp CT, integral mode | √ |
General Characterisitics | ||
Power | 9V battery (6F22) | |
Display | 32mm x 15mm | |
Product color | Red and grey | |
Product net weight | 120g | |
Product size | 175mm x 70mm x 38mm | |
Standard accessories | Battery, RS-232 interface cable, PC software CD |
