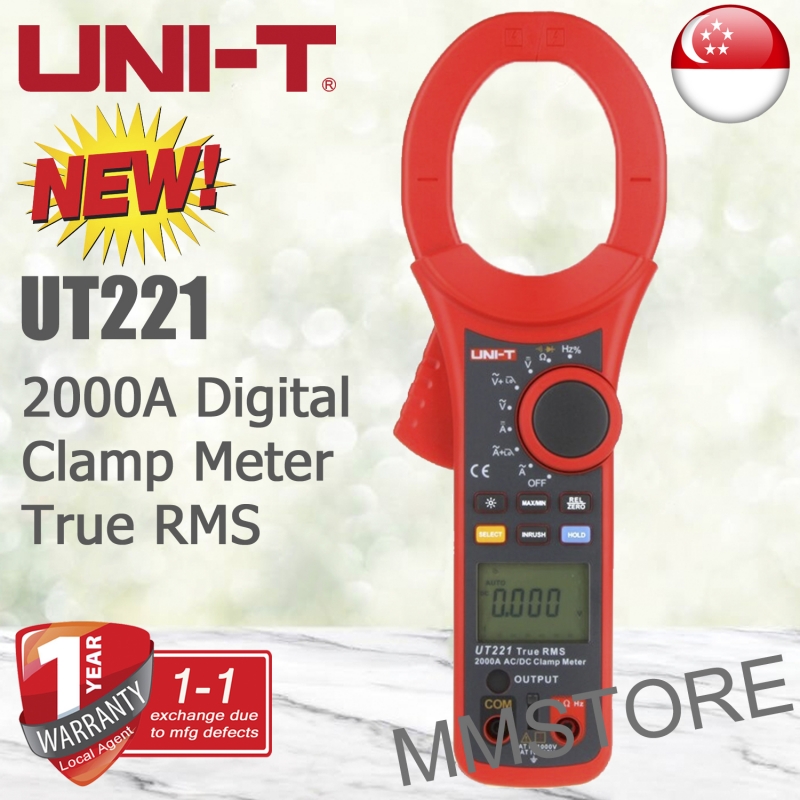

UNI-T UT221 Digital Clamp Meter

Model UT221

Condition New

UT220 series are 2000A AC/DC digital clamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A.

1. Auto range
2. Data hold
3. LCD backlight

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Write a review

By buying this product you can collect up to 27 loyalty points. Your cart will total 27 points that can be converted into a voucher of S$ 5.40.

Send to a friend

Send to a friend

UNI-T UT221 Digital Clamp Meter

UT220 series are 2000A AC/DC digital clamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A.

1. Auto range
2. Data hold
3. LCD backlight

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 279.00

Add to my wishlist

More info

Specifications	Range	UT221
AC current (A)	2000A	±(2.5%+5)
DC current (A)	2000A	±(2.5%+5)
AC voltage (V)	750V	±(1.2%+5)
DC voltage (V)	1000V	±(0.8%+1)
Resistance (Ω)	66MΩ	±(1%+2)
Frequency (Hz)	20MHz	±(0.1%+3)
Features
Display count		6000
Auto range/Diode		√
Jaw opening		63mm
True RMS (AC voltage/AC current)		√
Duty cycle	10%~90%	√
Continuity buzzer		√
Low pass filter		√
Inrush current	AC current	√
Relative mode		√
Data hold/MAX		√
MIN/I-OUT function		√
Analog bar graph		66
Full icon display		√
Low battery indication		√
Input impedance	≥10MΩ	√
General Characterisitics
Power	9V battery (6F22)
Display	43mm x 30mm
Product color	Red and grey
Product net weight	726g
Product size	298mm x 107mm x 47mm
Standard accessories	Test leads, output cable
