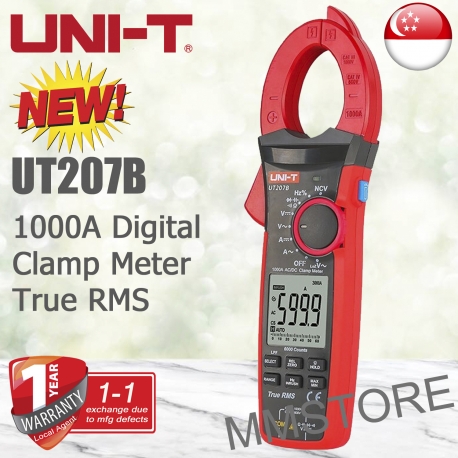

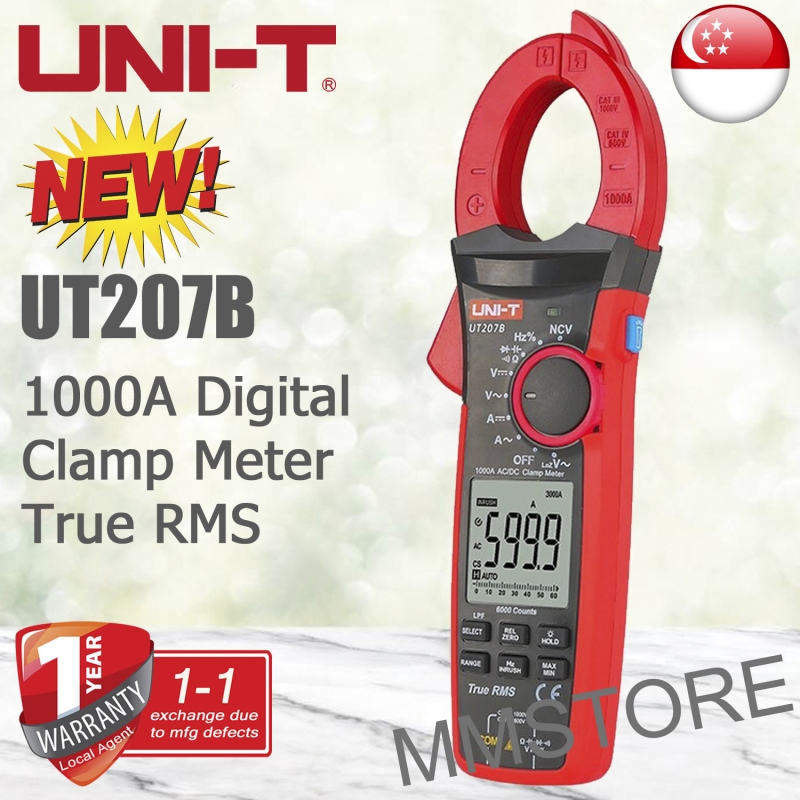

UNI-T UT207B True RMS Digital Clamp Meter

UT207B

New

UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.

1. Flashlight button: Short press thisbutton to turn on/off the flashlight.
2. Flexible current probe (optional) to extendthe AC current measurement range to3000A
3. Inrush current capture
4. NCV Multi-Segment Display and audio/visual alarm
5. True RMS/Auto backlight
6. NCV/Function retention

More details

3 Items

Hurry, Selling Fast!

By buying this product you can collect up to 11 loyalty points. Your cart will total 11 points that can be converted into a voucher of S$ 2.20.


S$ 115.00

More info

Specifications Range UT207B
AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
AC current frequency response   40Hz~400Hz
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 6V ±(1.2%+3)
60V/600V/1000V ±(1%+8)
DC voltage (V) 600mV ±(0.8%+3)
6V/60V ±(0.5%+5)
600V ±(0.5%+5)
1000V ±(0.5%+5)
Low pas filter (LPF ACV) 600V/1000V ±(2%+5)
AC voltage frequency response   40Hz~400Hz
LoZ ACV 600V/1000V ±(2%+5)
Resistance (Ω) 600Ω ±(1%+3)
6KΩ/60KΩ/600KΩ ±(1%+2)
6MΩ/60MΩ ±(2%+8)
Capacitance (F) 60nF ±(4%+25)
600nF/6μF/60μF/600μF ±(4%+5)
6mF/60mF ±(10%+9)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Features
Display count   6000
Jaw opening   42mm
Current frequency   50Hz~60Hz
High voltage frequency   40Hz~400Hz
Analog bar   31
Auto power off
Continuity test
Auto/Manual range
Low battery indication
Diode test
Relative mode/Data hold
MAX/MIN
Function selection
Flashlight
Wake-up function
Auto power off current: <50μA
Zero mode
Input impedance (ACV/DCV) ≥10MΩ
General Characteristics
Power 1.5V battery (R03) x 3
Display 43mm x 45mm
Product color Red and grey
Product net weight 420g
Product size 272mm x 81mm x 43.5mm
Standard accessories Test leads, batteries
