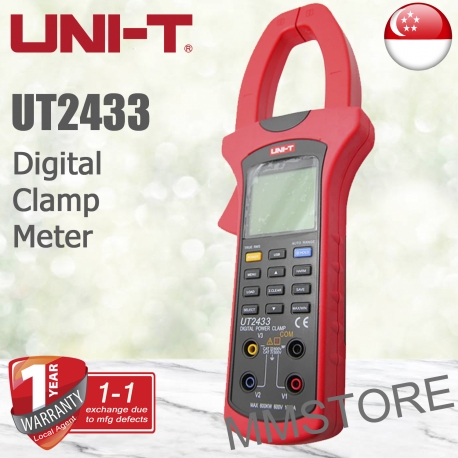

UNI-T UT2433 Power and Harmonics Clamp Meter

Model UT2433

Condition New

UT2433 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more. UT243 series can measure single harmonic components up to 20 times.

Applications:

It can be applied in power equipment/supply, circuit measurement, and power quality evaluation.

1. True RMS voltage/current measurement
2. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
3. 10000 count LCD dual display
4. Phase sequence detection
5. Max/Min modes
6. Auto range, auto power off, backlight, low battery indication
7. Equipped with USB interface and PC software CD

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

20 Item Items

Write a review

By buying this product you can collect up to 29 loyalty points. Your cart will total 29 points that can be converted into a voucher of S$ 5.80.

Send to a friend

Send to a friend

UNI-T UT2433 Power and Harmonics Clamp Meter

UT2433 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more. UT243 series can measure single harmonic components up to 20 times.

Applications:

It can be applied in power equipment/supply, circuit measurement, and power quality evaluation.

1. True RMS voltage/current measurement
2. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
3. 10000 count LCD dual display
4. Phase sequence detection
5. Max/Min modes
6. Auto range, auto power off, backlight, low battery indication
7. Equipped with USB interface and PC software CD

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 299.00

Quantity:

Add to my wishlist

More info

Specifications	Range	UT2433
AC current (A)	1000A	±(2%+5)
AC voltage (V)	600V	±(1.2%+5)
Frequency (Hz)	40Hz~80Hz	±(0.5%+5)
Active power (W)	0.01kW~600kW	±(3%+5)
Apparent power (VA)	0.01kVA~600kVA	±(3%+5)
Reactive power (VAr)	0.01kVAr~600kVAr	±(4%+5)
Power factor	0.3~1	±0.022
Phase angle (°)	0°~360°	±2°
Active energy (Wh)	1kWh~9999kWh	±(3%+2)
Features
Display count		10000
Auto range		√
Jaw opening		50mm
True RMS	AC voltage/AC current	√
Auto power off		√
Low battery indication		√
Data hold		√
MAX/MIN		√
Data storage		999
USB interface		√
LCD backlight		√
Full icon display		√
Harmonic analysis		1~20
Setup		√
Single-phase 2-wire		√
3-phase 3-wire		√
3-phase 4-wire		√
Phase sequence test	Positive phase, reverse phase, phase deficiency	√
Input impedance for DCV		≥5MΩ
Input protection		√
General Characterisitics
Power	1.5V battery (R6) x 4
Display	46mm x 42mm
Product color	Red and grey
Product net weight	601g
Product size	303mm x 112mm x 39mm
Standard accessories	Batteries, test leads, alligator clips, USB interface cable, PC software CD
