UT219DS
New
UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
1. LoZ input for ghost voltage measurement
2. Flashlight and auto backlight
3. 3-phase motor sequence test
4. Temperature and μA measurements (flame sensor)
5. Inrush current
6. AC+DC voltage
7. V+A dual display
2 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 21 loyalty points. Your cart will total 21 points that can be converted into a voucher of S$ 4.20.

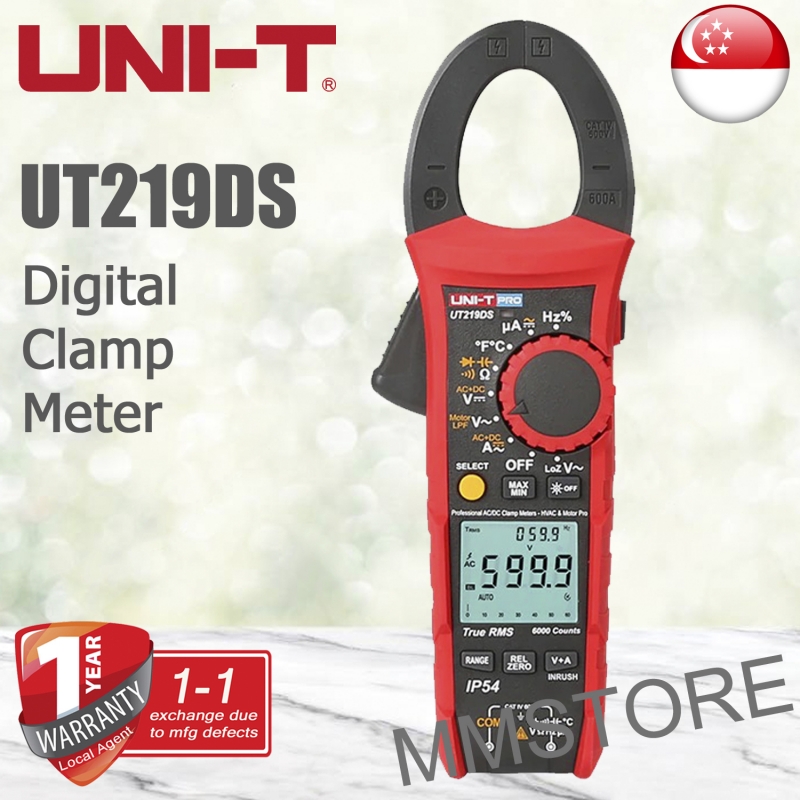

UNI-T UT219DS Digital Clamp Meter
UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
1. LoZ input for ghost voltage measurement
2. Flashlight and auto backlight
3. 3-phase motor sequence test
4. Temperature and μA measurements (flame sensor)
5. Inrush current
6. AC+DC voltage
7. V+A dual display
Recipient :
* Required fields
or Cancel
Specifications | Range | UT219DS |
AC current (A) | 600A | ±(1.8%+6) |
DC current (A) | 600A | ±(1.8%+6) |
AC voltage (V) | 600V | ±(1%+6) |
DC voltage (V) | 600V | ±(0.6%+3) |
LoZ ACV | 600V | ±(2.5%+6) |
Resistance (Ω) | 60MΩ | ±(1%+3) |
Capacitance (F) | 60mF | ±(4%+7) |
Frequency (Hz) | 600Hz~40MHz | ±(0.1%+6) |
Duty cycle | 0.1%~99.9% | ±(2.6%+7) |
Temperature | -40~1000℃ | ±(2%+5℃) |
-40~1832℉ | ±(2%+9℉) | |
Features | ||
Display count | 6000 | |
Auto/Manual range | √ | |
Jaw opening | 33mm | |
True RMS | √ | |
AC current frequency response | 40Hz~400Hz | |
AC voltage frequency response | 40Hz~1kHz | |
3-phase motor sequence test | 600V | √ |
Low pass filter | 1kHz, 3db attenuation | √ |
V+A displays voltage and current at the same time | √ | |
Diode test | 3V | |
Measurement sampling rate | 5 times/s | |
Analog bar sampling rate | 20 times/s | |
Analog bar | 31 segment | |
Display interface (LCD) | Dual | |
Auto power off/MAX/MIN | √ | |
Low battery indication | √ | |
Data hold (H)/Relative mode (REL) | √ | |
ZERO mode | √ | |
Function selection (SELECT) | √ | |
Auto backlight/2m drop test | √ | |
IP rating | IP54 | |
Input impedance | ≥10MΩ | √ |
General Characterisitics | ||
Power | 1.5V battery (R03) x 3 | |
Display | 35mm x 31mm | |
Product color | Red and grey | |
Product net weight | 310g | |
Product size | 234.6mm x 82mm x 47mm | |
Standard accessories | Test leads, batteries, carrying bag, PC software CD, point contact temperature probe |
