UT216C
New
UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.
1. True RMS
2. Auto range, 3 times/s sampling rate
3. MAX/MIN/Relative modes
4. K-type temperature probe
5. Flashlight
6. 400Hz measurement
7. NCV, non-contact AC voltage testing
8. VFC, low pass filter
9. Zeroing function
10. Inrush current
11. Analog bar graph
3 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 14 loyalty points. Your cart will total 14 points that can be converted into a voucher of S$ 2.80.

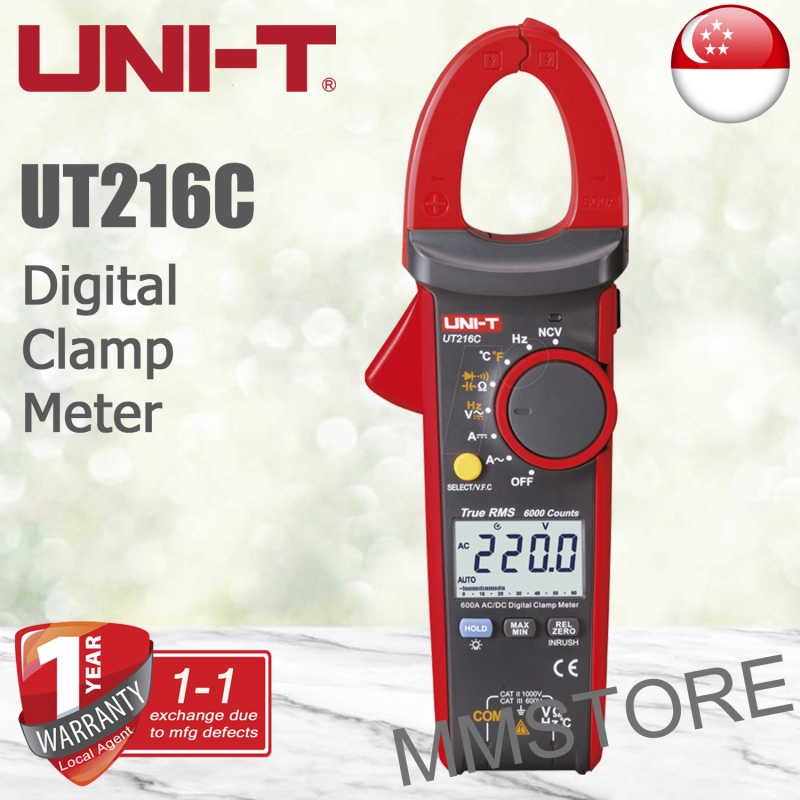

UNI-T UT216C Digital Clamp Meter
UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.
1. True RMS
2. Auto range, 3 times/s sampling rate
3. MAX/MIN/Relative modes
4. K-type temperature probe
5. Flashlight
6. 400Hz measurement
7. NCV, non-contact AC voltage testing
8. VFC, low pass filter
9. Zeroing function
10. Inrush current
11. Analog bar graph
Recipient :
* Required fields
or Cancel
Specifications | Range | UT216C |
AC current (A) | 600A | ±(2.5%+5) |
AC current frequency response | 40~400Hz | |
DC current (A) | 600A | ±(2.5%+5) |
AC voltage (V) | 750V | ±(1.2%+5) |
AC voltage frequency response | 40~400Hz | |
DC voltage (V) | 1000V | ±(0.8%+1) |
Resistance (Ω) | 60MΩ | ±(1%+2) |
Capacitance (F) | 60mF | ±(4%+5) |
Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) |
Temperature | -40°C~1000°C | ±(2%+5) |
-40°F~1832°F | ±(2%+10) | |
Features | ||
Display count | 6000 | |
Auto range | √ | |
Jaw opening | 30mm | |
True RMS | √ | |
Diode | Around 3.0V | √ |
V.F.C. | √ | |
NCV | √ | |
Data hold | √ | |
Relative mode | √ | |
MAX/MIN | √ | |
LCD backlight | √ | |
Inrush current | √ | |
Analog bar graph | 61 | |
Flashlight | √ | |
Auto power off | √ | |
Continuity buzzer | √ | |
Low battery indication | ≤3.6V | √ |
Input protection | √ | |
Input impedance for DCV | ≥10MΩ | √ |
General Characteristics | ||
Power | 1.5V battery (R03) x 3 | |
Display | 38mm x 24mm | |
Product color | Red and grey | |
Product net weight | 231.7g | |
Product size | 220mm x 75mm x 40mm | |
Standard accessories | Batteries, test leads, point contact temperature probe |
