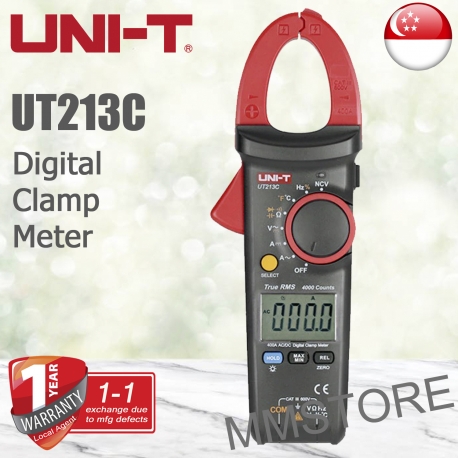

UNI-T UT213C Digital Clamp Meter

UT213C

New

UT213 series is 400A digital clamp meter with CAT III 600V safety standards. These meters are designed for electricians and HVAC/R technicians. The built-in flashlight also makes these meters useful tools when working in dark environments.

1. Auto range
2. 4000 display count, 3/s sampling rate
3. NCV, non-contact voltage
4. Frequency and duty ratio
5. 30mm large jaw,Continuity Buzzer
6. Data hold; LCD backlight
7. Auto power off,Relative Mode,Flashlight

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

10 Items

By buying this product you can collect up to 9 loyalty points. Your cart will total 9 points that can be converted into a voucher of S$ 1.80.


S$ 95.00

More info

Specifications Range UT213C
AC current (A) 400A ±(2.5%+5)
DC current (A) 400A ±(2%+3)
AC voltage (V) 600V ±(1.2%+5)
DC voltage (V) 600V ±(0.8%+3)
Resistance (Ω) 40MΩ ±(1%+2)
Capacitance (F) 40mF ±(4%+5)
Frequency 10Hz~1MHz ±(0.1%+4)
Temperature -40℃~1000℃ ±(1%+3)
-40℉~1832℉ ±(1%+6)
Features
Display count   4000
Auto range
Jaw opening   30mm
True RMS
Diode   Around 3.0V
NCV
Data hold
Relative mode
MAX/MIN
LCD backlight
Flashlight
Auto power off
Continuity buzzer
Low battery indication
Input protection
Input impedance for DCV
General Characteristics
Power 1.5V battery (R03) x 3
Display 38mm x 24mm
Product net weight Red and grey
Product color 231.7g
Product size 220mm x 75mm x 40mm
Standard accessories Batteries, test leads, point contact temperature probe
