UT211B
New
UT211B 60A mini clamp meter is a high precision tool designed with the resolution of 0.1mA. UT211B is perfect for anyone requiring high precision and accurate results when working with electronics, such as troubleshooting solar power systems current load, electrical cars, etc. It is ergonomically designed and also lightweight, making it a convenient tool for working in tight spaces.
1. Max AC current resolution: 0.1mA
2. Max DC current resolution: 1mA
3. AC current accuracy: ±(1.5%+10)
4. Auto range, 6000 display count
5. VFC low pass filter
6. NCV testing
7. Zero mode
8. Data hold, LCD backlight
9. True RMS
10. 17mm jaw
11. Auto power off, low battery indication
3 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 17 loyalty points. Your cart will total 17 points that can be converted into a voucher of S$ 3.40.

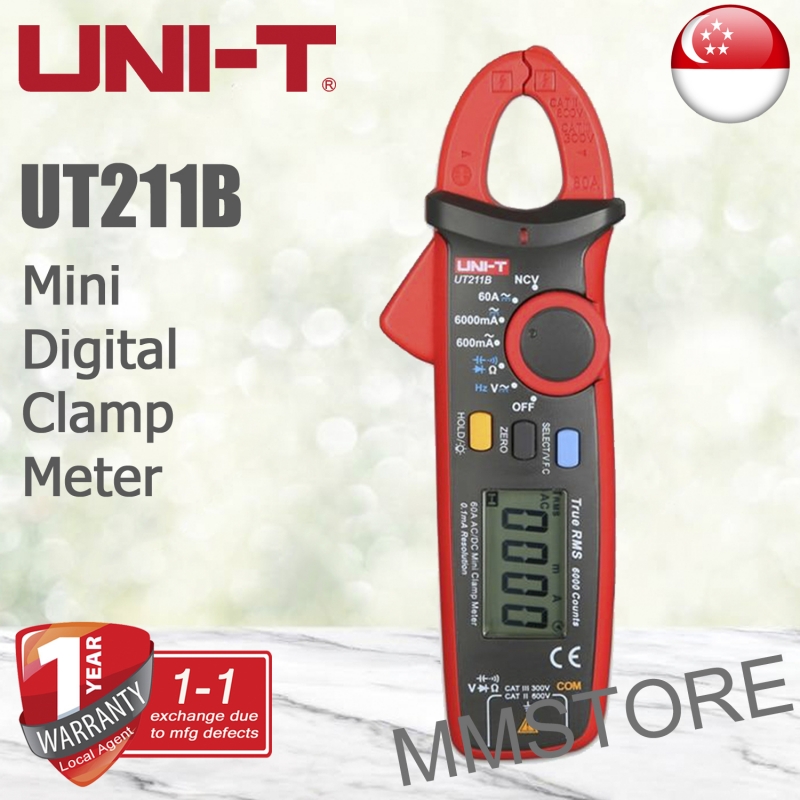

UNI-T UT211B Mini Digital Clamp Meter
UT211B 60A mini clamp meter is a high precision tool designed with the resolution of 0.1mA. UT211B is perfect for anyone requiring high precision and accurate results when working with electronics, such as troubleshooting solar power systems current load, electrical cars, etc. It is ergonomically designed and also lightweight, making it a convenient tool for working in tight spaces.
1. Max AC current resolution: 0.1mA
2. Max DC current resolution: 1mA
3. AC current accuracy: ±(1.5%+10)
4. Auto range, 6000 display count
5. VFC low pass filter
6. NCV testing
7. Zero mode
8. Data hold, LCD backlight
9. True RMS
10. 17mm jaw
11. Auto power off, low battery indication
Recipient :
* Required fields
or Cancel
Specifications | Range | UT211B |
AC current (A) | 60A (0.1mA resolution) | ±(1.5%+10) |
DC current (A) | 60A | ±(2%+3) |
AC voltage (V) | 600V | ±(0.8%+3) |
DC voltage (V) | 600V | ±(0.7%+3) |
Resistance (Ω) | 60MΩ | ±(0.8%+2) |
Capacitance (F) | 62mF | ±(4%+5) |
Features | ||
Display count | 6000 | |
Auto range | √ | |
True RMS | √ | |
Diode test | Around 3.0V | √ |
V.F.C. | √ | |
NCV | √ | |
Data hold | √ | |
Zero mode | √ | |
LCD backlight | √ | |
Auto power off | Around 15 minutes | √ |
Continuity buzzer | √ | |
Low battery indication | ≤2.5V | √ |
Input protection | √ | |
Input impedance for DCV | ≥10MΩ | √ |
General Characteristics | ||
Power | 1.5V battery (R03) x 2 | |
Display | 39.3mm x 26.5mm | |
Product net weight | Red and grey | |
Product color | 170g | |
Product size | 175mm x 60mm x 33.5mm | |
Standard accessories | Batteries, test leads |
