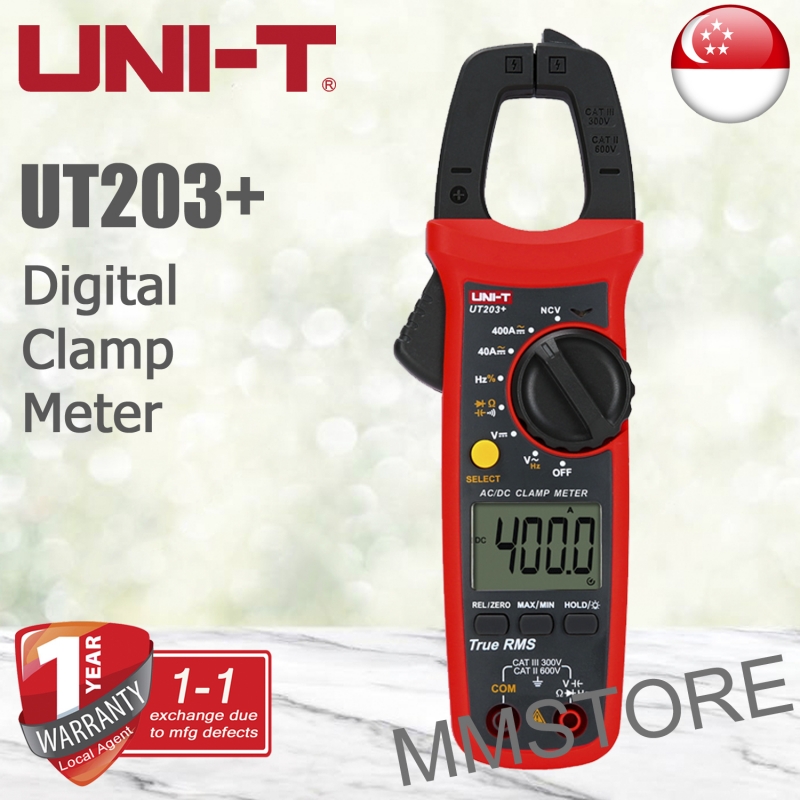

UNI-T UT203+ Digital Clamp Meter

UT203+

New

UT200+ series handheld automatic range true RMS clamp meter, designed according to safety standard EN61010-2010 CAT II600V/CAT III 300V grade, with full-function gear anti-burn protection, can meet high reliability and high safety operation requirements.

  • Large screen LCD display, fast ADC / analog to digital converter
  • Full-featured false detection protection, over voltage, over current alarm prompt
  • True RMS; voltage measurement 600V
  • With high voltage frequency measurement
  • AC current measurement function

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

50 Items

By buying this product you can collect up to 7 loyalty points. Your cart will total 7 points that can be converted into a voucher of S$ 1.40.


S$ 70.00

More info

Specifications Range UT203+
AC current (A) 400A ±(2.5%+5)
DC current (A) 400A ±(2.5%+5)
AC voltage (V) 600V  ±(0.8%+5)
AC voltage frequency(Hz) 10Hz~60kHz ±(0.5%+2)
DC voltage (A) 600V  ±(0.5%+2)
Resistance (Ω) 40MΩ ±(0.8%+2)
Capacitance (F) 40mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Features
Display count   4000
Auto range
Jaw opening   28mm
True RMS
NCV
Continuity test
Diode
MAX/MIN
Relative mode
Zero mode
Data hold
Low battery indication
Auto power off
General Characterisitics
Power 1.5V battery (R03) x 2
Display 37mm x 25mm
Product color Red and grey
Product net weight 235g
Product size 215mm x 63mm x 36mm
