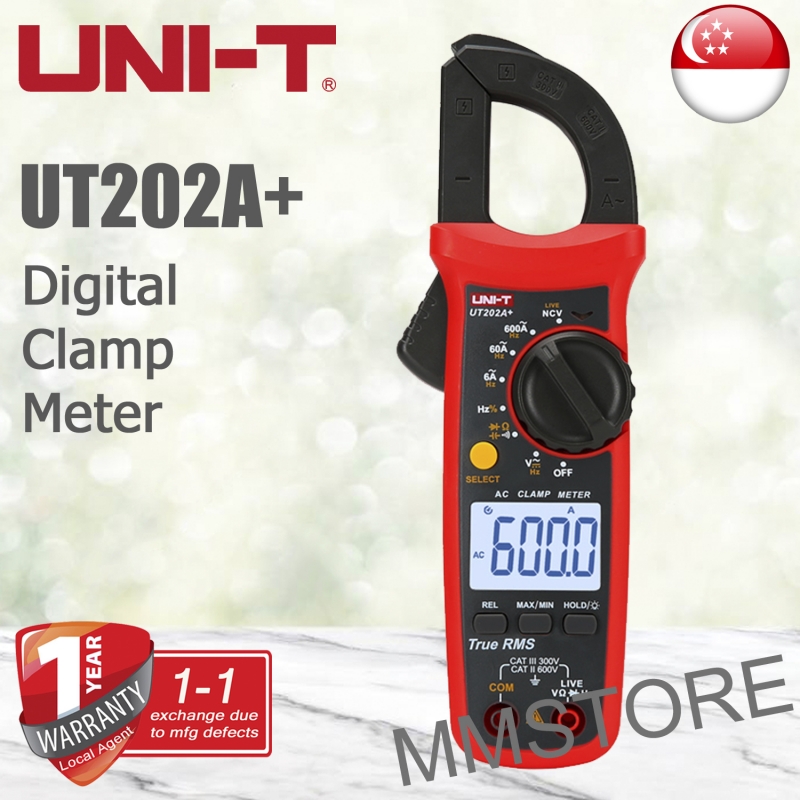

UNI-T UT202A+ Digital Clamp Meter

UT202A+

New

UT200+ series handheld automatic range true RMS clamp meter, designed according to safety standard EN61010-2010 CAT II600V/CAT III 300V grade, with full-function gear anti-burn protection, can meet high reliability and high safety operation requirements.

  • Large screen LCD display, fast ADC / analog to digital converter
  • Full-featured false detection protection, over voltage, over current alarm prompt
  • True RMS; voltage measurement 600V
  • With high voltage frequency measurement
  • AC current measurement function

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

10 Items

By buying this product you can collect up to 3 loyalty points. Your cart will total 3 points that can be converted into a voucher of S$ 0.60.


S$ 34.00

More info

Specifications Range UT202A+
AC current (A) 600A ±(2%+10)
AC current frequency (Hz) 50Hz~100Hz ±(1%+5)
AC voltage (V) 600V  ±(0.8%+5)
AC voltage frequency(Hz) 10Hz~10kHz ±(1%+5)
DC voltage (A) 600V  ±(0.5%+2)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 60mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Features
Display count   6000
Auto range
Jaw opening   28mm
True RMS
NCV
Live wire test
Continuity test
Diode
MAX/MIN
Relative mode
Data hold
Low battery indication
Auto power off
General Characterisitics
Power 1.5V battery (R03) x 2
Display 37mm x 25mm
Product color Red and grey
Product net weight 248g
Product size 215mm x 63mm x 36mm
