2230G-30-1
New
Series 2220 and 2230 Multi-Channel Programmable DC Power Supplies are ideal for testing a wide range of devices, circuit boards, modules, and products that require multiple power sources cost-effectively. Series 2200 supplies provide two channels, each capable of outputting up to 30V and up to 1.5A. Series 2230 supplies include two 30V/1.5A channels plus a 6V channel with up to 5A output for powering digital circuits. The USB interface is standard on all models; the “G” versions add a GPIB interface.
• All channels are independently controlled and have isolated outputs for maximum flexibility
• All channels have remote sensing to ensure that programmed voltage is accurately applied to the load
• Two 30V channels can be combined either in series to double output voltage or in parallel to double output current
• 0.03% basic voltage output accuracy and 0.1% current accuracy ensure quality test data
• Low noise, linear regulation with <3mVpp ripple and noise
1 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 262 loyalty points. Your cart will total 262 points that can be converted into a voucher of S$ 52.40.

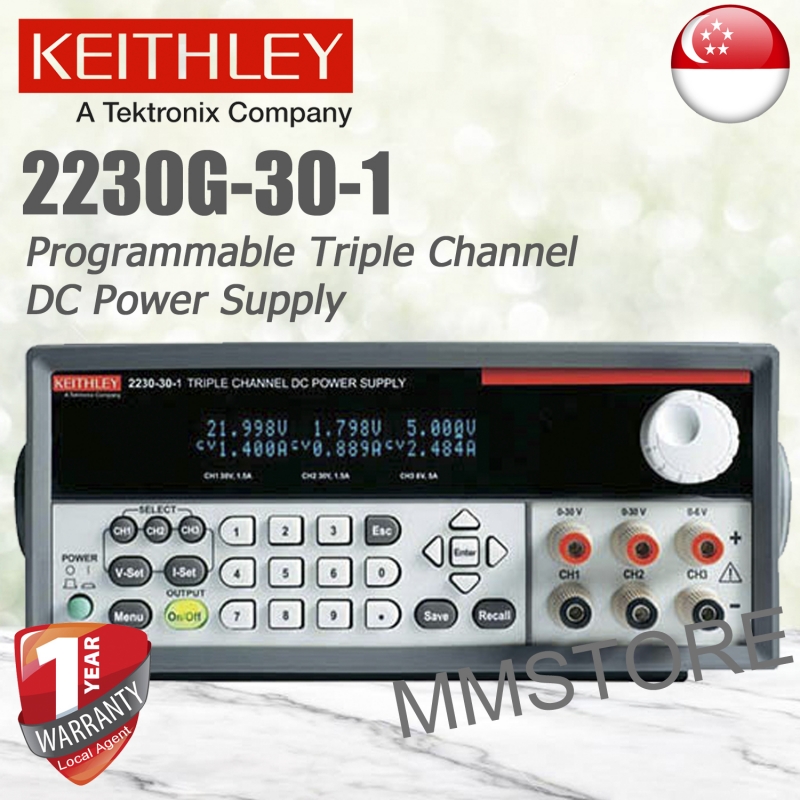

Keithley 2230G-30-1 Triple Channel DC Power Supply
Series 2220 and 2230 Multi-Channel Programmable DC Power Supplies are ideal for testing a wide range of devices, circuit boards, modules, and products that require multiple power sources cost-effectively. Series 2200 supplies provide two channels, each capable of outputting up to 30V and up to 1.5A. Series 2230 supplies include two 30V/1.5A channels plus a 6V channel with up to 5A output for powering digital circuits. The USB interface is standard on all models; the “G” versions add a GPIB interface.
• All channels are independently controlled and have isolated outputs for maximum flexibility
• All channels have remote sensing to ensure that programmed voltage is accurately applied to the load
• Two 30V channels can be combined either in series to double output voltage or in parallel to double output current
• 0.03% basic voltage output accuracy and 0.1% current accuracy ensure quality test data
• Low noise, linear regulation with <3mVpp ripple and noise
