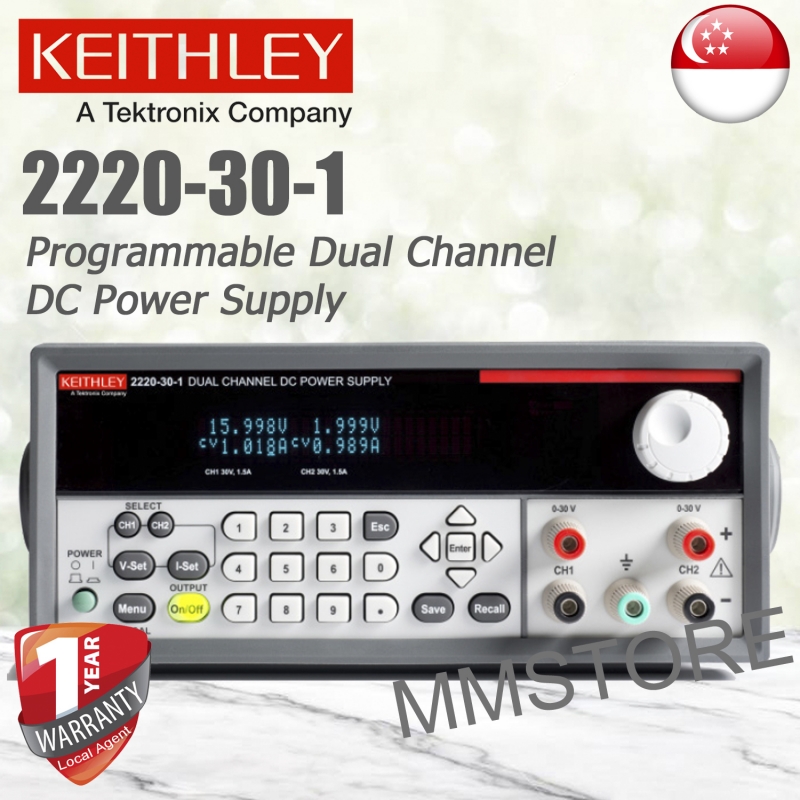

Keithley 2220-30-1 Dual Channel DC Power Supply

Model 2220-30-1

Condition New

0 Item Items

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Hurry, Selling Fast!

Availability date:

Tweet Share Google+

By buying this product you can collect up to 214 loyalty points. Your cart will total 214 points that can be converted into a voucher of S$ 42.80.

• Send to a friend

  Send to a friend



  Keithley 2220-30-1 Dual Channel DC Power Supply

  Series 2220 and 2230 Multi-Channel Programmable DC Power Supplies are ideal for testing a wide range of devices, circuit boards, modules, and products that require multiple power sources cost-effectively. Series 2200 supplies provide two channels, each capable of outputting up to 30V and up to 1.5A. Series 2230 supplies include two 30V/1.5A channels plus a 6V channel with up to 5A output for powering digital circuits. The USB interface is standard on all models; the “G” versions add a GPIB interface.

  • All channels are independently controlled and have isolated outputs for maximum flexibility

  • All channels have remote sensing to ensure that programmed voltage is accurately applied to the load

  • Two 30V channels can be combined either in series to double output voltage or in parallel to double output current

  • 0.03% basic voltage output accuracy and 0.1% current accuracy ensure quality test data

  • Low noise, linear regulation with <3mVpp ripple and noise
