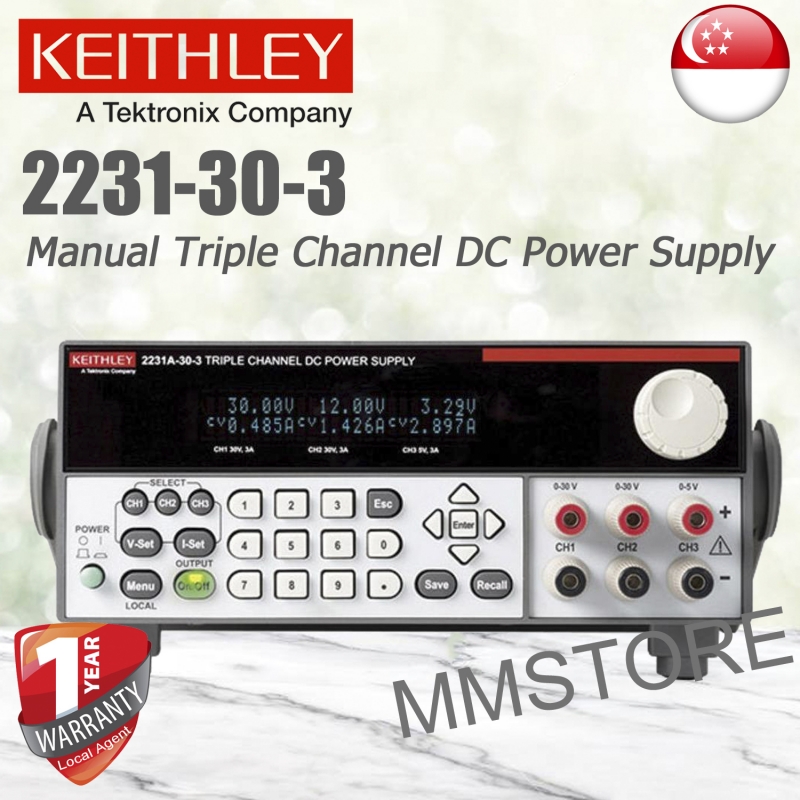

  Keithley 2231A-30-3 Triple Channel DC Power Supply

  The Model 2231A-30-3 Triple Channel DC Power Supply can output a total of 195W of power, providing the power levels needed to energize a wide range of circuits and devices for benchtop work. Two channels can supply up to 30V at 3A each; the third channel can provide up to 5V at 3A. The Model 2231A-30-1 does not compromise on performance or convenience features, offering the versatility and ease of use you need, so it can be the only DC power supply on your bench.

  • Get three isolated, independent, and adjustable outputs in one instrument

  • Output a total of 195W of power with two 30V@3A outputs and one 5V@3A output

  • Set voltage outputs with 0.06% basic accuracy and current outputs with 0.2% basic accuracy

  • Output DC power with less than 5mVp-p noise

  • Display voltage and current measurements continuously from all three outputs
