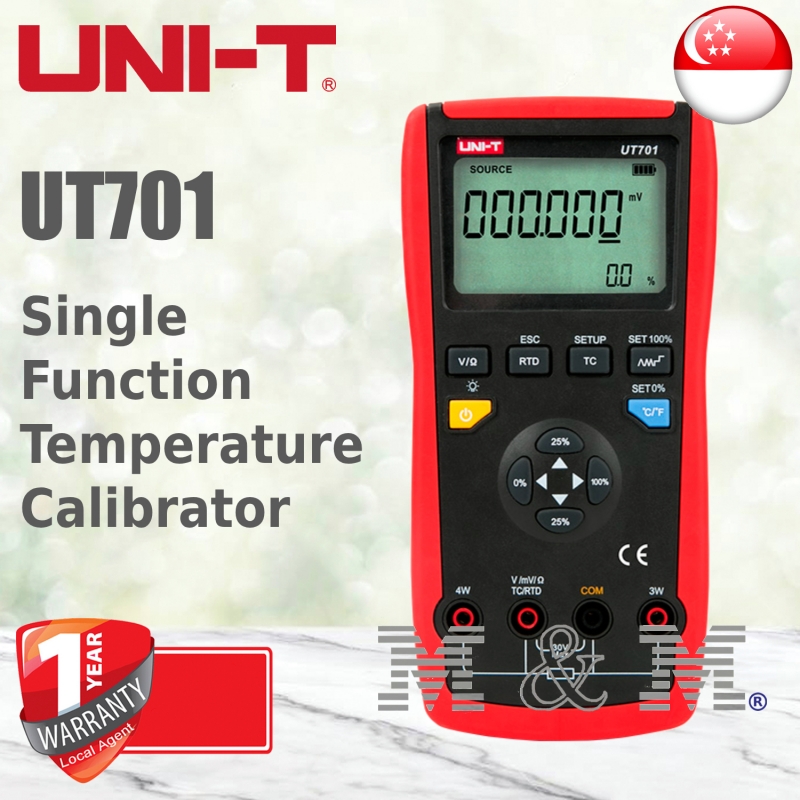

UNI-T UT701 Single Function Temperature Calibrator

UT701

New

UT701 Single Function Temperature Calibrator Equipped with 10 thermocuple types, 4 RTD types, and voltage/resistance output function, UT701 is professional and convenient for users to calibrate and repair various temperature testers. Easy-to-operate keys, selectable steps and ramp outputs make operations efficient and accurate. It features LCD backlight, auto power off, bi-color injection case and 1m drop proof.

  • Up to 0.05% output accuracy
  • 6-digit display
  • Output functions: DC voltage, resistance, thermocouple, and thermal resistance
  • 10 thermocouple scales
  •  4 thermal resistance scales
  •  High precision automatic cold junction compensation for thermocouple outputs
  •  Manual stepping and automatic stepping and  ramping
  •  Stores and recalls setups

More details

1 Item

Hurry, Selling Fast!

By buying this product you can collect up to 33 loyalty points. Your cart will total 33 points that can be converted into a voucher of S$ 6.60.


S$ 330.00

More info

Specifications

Type

Range

Accuracy

Source accuracy
DC mV 100.000mV ±(0.05%+20)
1000.0mV ±(0.05%+3)
Resistance (Ω) 500.0Ω ±(0.05%+2)
5000Ω ±(0.05%+2)
Thermocouples J -20~1200℃ (-328~2192℉) ±0.7℃
K -200~1370℃ (-328~2498℉) ±1℃
T -200~400℃ (-328~752℉) ±0.8℃
E -200~950℃ (-328~1742℉) ±0.7℃
R -20~1750℃ (-4~3182℉) ±1.4℃
S -20~1750℃ (-4~3182℉) ±1.5℃
B 600~1800℃ (1112~3272℉) ±1.4℃
N -200~0~1300℃ (-328~2372℉) ±0.9℃
Wre325 0~2000℃ (32~3632℉) ±1.8℃
Wre526 0~2300℃ (32~4172℉) ±1.8℃
RTDs Pt10 -200~850℃ (-328~1562℉) ±(0.5%+6℃)
Pt100 ±(0.05%+0.6℃)
Cu50 -50~150℃ (-58~302℉) ±(0.05%+0.6℃)
Cu100 ±(0.05%+0.6℃)

Features

Ramp functions Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range

General Characteristics of UT701

Power 9V battery (6F22)
Display 63mm x 40mm
Product color Red and grey
Product net weight 410g
Product size 96mm x 193mm x 47mm
Standard accessories Test leads, battery
Standard individual packing Gift box, English manual, cloth bag
