UT603
New
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters. These meters can be used to check electronic components in electronic labs, production lines, maintenance facilities and schools.
Display Count: 1999
Manual Range: √
Diode: √
Transistor: √
Continuity Buzzer: √
Low Battery Indication: √
Hurry, Selling Fast!
Availability date:

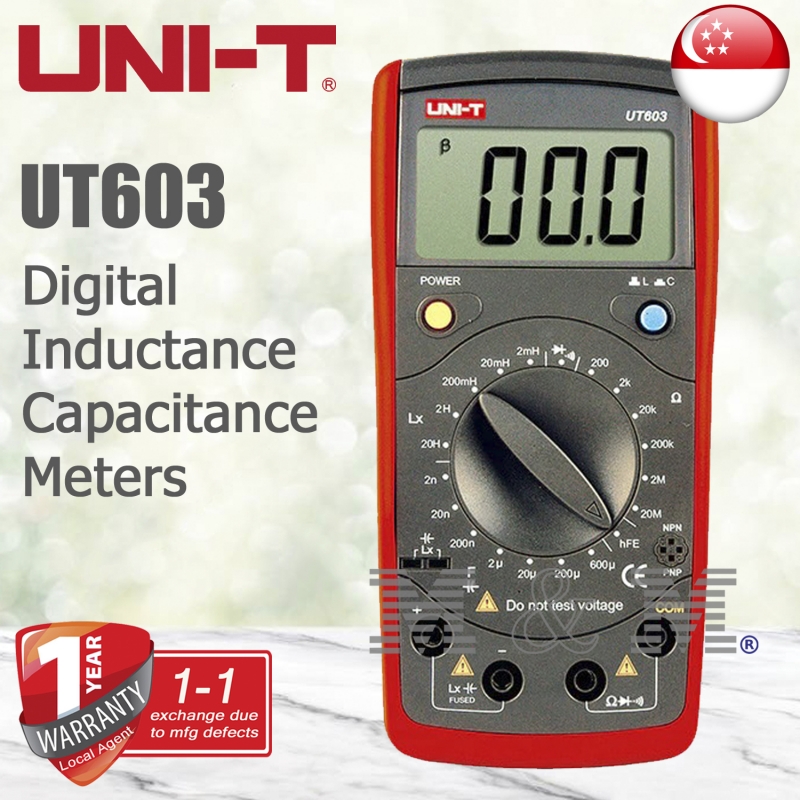

UNI-T UT603 Digital Inductance Resistance Capacitance Meter
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters. These meters can be used to check electronic components in electronic labs, production lines, maintenance facilities and schools.
Display Count: 1999
Manual Range: √
Diode: √
Transistor: √
Continuity Buzzer: √
Low Battery Indication: √
Recipient :
* Required fields
or Cancel
Specifications | Range | UT603 |
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) |
Capacitance (F) | 2nF/20nF/200nF/2uF/20uF/200uF/600uF | ±(1%+5) |
Inductance (H) | 2mH/20mH/200mH/2H/20H | ±(2%+8) |
Features | ||
Display count | 2000 | |
Manual range | √ | |
Diode | √ | |
Transistor | √ | |
Continuity buzzer | √ | |
Low battery indication | √ | |
General Characterisitics | ||
Power | 9V battery (6F22) | |
Display | 61mm x 32 mm | |
Product color | Red and grey | |
Product net weight | UT601/UT602: 310g, UT603: 312g | |
Product size | 172mm x 83mm x 38mm | |
Standard accessories | Battery, test leads with alligator clips, holster |
