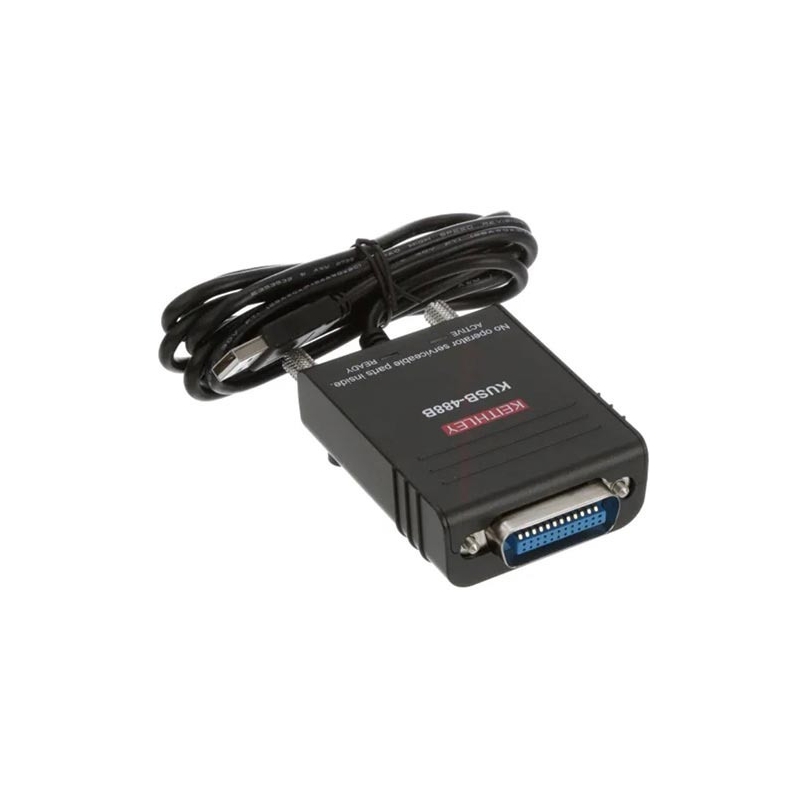

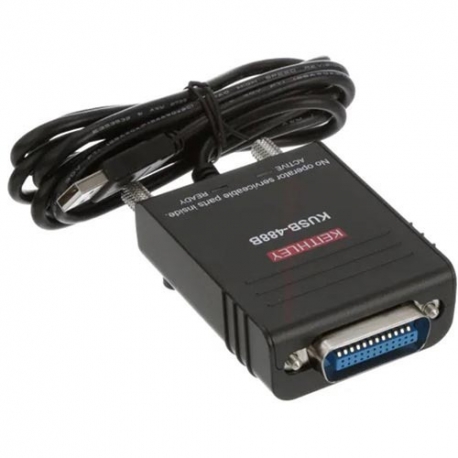

Keithley KUSB-488B USB to GPIB Interface Adapter

Model KUSB-488B

Condition New

Hurry, Selling Fast!

Availability date:

Tweet Share Google+

• Send to a friend

  Send to a friend



  Keithley KUSB-488B USB to GPIB Interface Adapter

  The KUSB-488B from Keithley is an IEEE-488 USB to GPIB interface converter. The USB-to-GPIB interface turns any computer with a USB port into a fully functional GPIB controller. The KUSB-488B’s small form factor makes it perfect for use with laptop computers in portable applications or for other applications in which the computer has no available PCI plug-in board slots. The product is USB 2.0 compliant and has an IEEE data transfer rate upwards of 1.5MB/s through the USB port.

  • IEEE-488.1 and IEEE-488.2 standards compatible
  • Plug and play interface
  • Built-in 2meter USB cable
  • 500mA current at 5VDC
  • No external power required
  • Device drivers for Microsoft Windows® XP/2000/Vista operating systems
  • Dimension is 3.2inch x 2.6inch x 1.1inch (81.7mm x 66.1mm x 27.8mm)
  • Operating range from 0°C to 55°C, 10% to 90% RH non-condensing
  • Compatible with any standard GPIB instrument

  Avail subj. to prior sales, otherwise lead time 6 to 8 weeks
